TEN-FUNCTION AEROSOL FREES SEIZED PARTS

NSF H1 CERTIFICATION FOR FOOD INDUSTRY USE

READILY AND FULLY BIODEGRADABLE

CEC L33 T82, OCDE 301 A

PENETRATES, FREES UP SEIZED PARTS, DEOXIDISES, LUBRICATES, PROTECTS AGAINST CORROSION

CLEANS, DEGREASES, DILUTES, CLEANSES, PREVENTS ADHESION

REMOVES TAR, REMOVES BITUMEN, LUSTERS ELASTOMERS

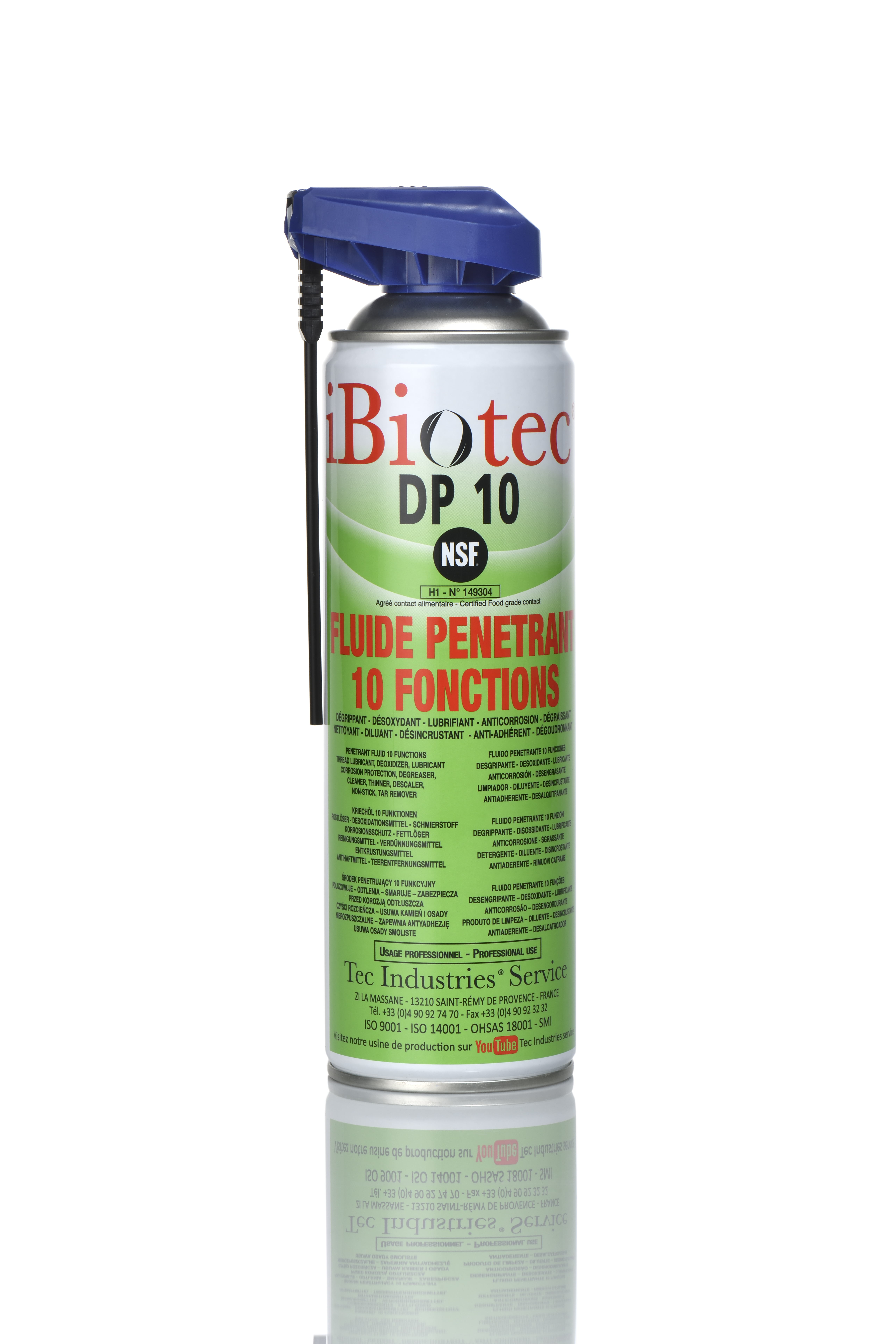

 iBiotec DP10 PENETRATING AEROSOL





DESCRIPTION

Deoxidizing, lubricant, tar remover.

Clean, colourless, free from silicone, free from orthophosphoric acid and chlorinated solvents.

Eliminates rubber coating, light or heavy hydrocarbons.

This product, based on vegetal natural esters, is neutral.

It does not have any photochemical reactivity.

Very low surface tension.

This product is compatible with all plastic materials and elastomers. It does not affect paints.



APPLICATIONS

Bolt and screw manufacture, pot type joints, needles, swivels,

boulons, electromechanical contacts, hinges, guides, slides,

telescopic antennas, chain degreasing.



USE FIELDS

Mechanical industries. Maintenance workshops. Automobile aftersales.

Agricultural industries and farmings. Transport materials. Cement plants.

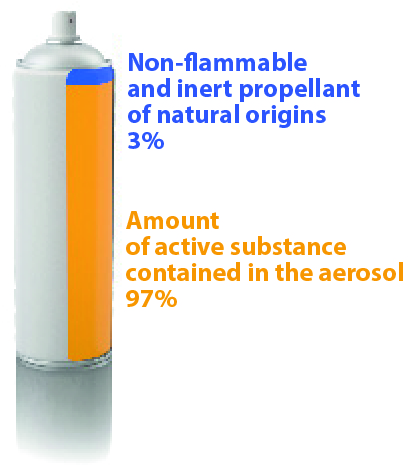

MORE ECONOMICAL

Apart an obvious risk, from a safety point of view, the quantities of Butane-Propane implemented in an aerosol, are largely higher than those of a compressed gas such as CO2. It results from it, despite a net volume of more important filling, a weaker quantity of active ingredient.



MORE EFFICIENT BECAUSE…

More protective

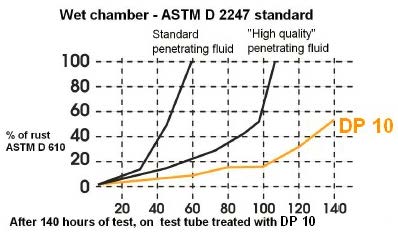

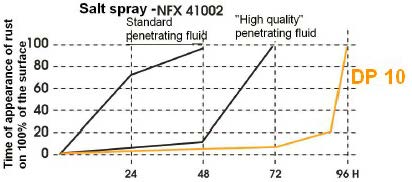

DP 10 shows that its protective film is able to act as efficient “protective oil” which stops and prevents for a long time formations of rust and oxidation.



It results from these tests:

- a facilitated releasing of assemblies, tools and machine elements;

- an effective penetrating power, when it is used in assembly;

- a better conservation of pieces even under aggressive conditions, such as in maritime transport.



More penetrating, anti wear

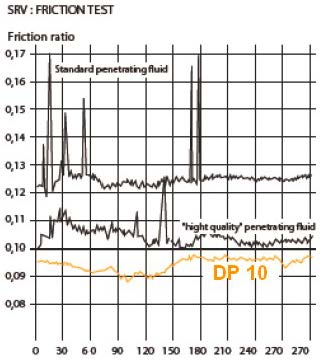

FRICTION RATIO ACCORDING

TO SRV FRICTION TEST

The friction test SRV makes it possible to determine a friction ratio ; the more friction ratio is low :

- the more power consumption is low

- the more efforts of disassembling are weak

- the more noises of operation are reduced.



Such as we can see it on the opposite graph, DP 10 ensures an extremely weak and particularly constant friction ratio.

The line drawing shows the absence of peaks, which indicate the problems of seizing between surfaces. The same peaks for a standard penetrating fluid and a “high quality” penetrating fluid slightly highlight the very weak power of some penetrating fluids.

Penetrating fluid, penetrating fluid spray, penetrating oil, super penetrating oil spray, super eez penetrating spray, penetrating fluid ibiotec







Penetrating fluid, penetrating fluid spray, penetrating oil, super penetrating oil spray, super eez penetrating spray, penetrating fluid ibiotec





Penetrating fluid, penetrating fluid spray, penetrating oil, super penetrating oil spray, super eez penetrating spray, penetrating fluid ibiotec



MORE ECOLOGICAL

DP 10 is based on vegetal origin esters. It results a completely biodegradable product according to OCDE criteria :

Easily biodegradable according to OCDE 301B test (follow up of CO2 emission during dissipation). Completely biodegradable according to OCDE 302C test (manometric follow up during dissipation). Moreover, DP 10 is totally free from compounds classified dangerous for environment. It has a vapour tension less than 0,1 hPa at 20°C : it is totally free from VOC.



NOT DANGEROUS FOR HEALTH

DP 10 is guaranteed without chlorinated solvent such as PER, TRI and methylene chloride, which are classified cancerogenic.

It is completely free from aromatic compounds or benzene compounds.

Formulated on vegetal base, it is not classified dangerous for health, according to CE criteria (non irritating, not damaging, not sensitizing, not CMR, not toxic…)

Easy to use, it does not issue steam and is practically odourless.



DIRECTIONS FOR USE

Shake the aerosol briefly. Spray without excess onto the surfaces to be disassembled or treated. Aerosol usable in any position.



                             Download the data sheet



PHYSICO-CHEMICAL PROPERTIES TYPICALS

PROPERTIES

STANDARD

VALUE

UNITS

Appearance

Visual

Clear

-

Colour

Visual

Amber

-

Odour

Olfactory

Pine

-

Density at 25°C

EN ISO 12185

820

kg/m3

Refraction index

ISO 5661

1.4500

-

Freezing point

ISO 3016

- 22

°C

Water solubility

  -

Insoluble

%

Kinematic viscosity at 40°C

EN 3104

3.6

mm²/s

Acid value

EN 14104

 <0.1

mg KOH/g

Iodine value

EN 14111

<0.2

g I2/100g

Water content

ISO 6296

50

ppm

PERFORMANCE PROPERTIES AS A DEGREASING SOLVENT

PROPERTIES

STANDARD

VALUE

UNITS

KB index

ASTM D1133

95

-

Evaporation rate

  -

N/A

min

Surface tension at 20°C

ISO 6295

 29.8

Dyne/cm

Breakdown voltage at 20°C

  EN 60156 / IEC 156

63

kV

Copper blade corrosion, 100 h at 40°C

ISO 2160

1a

Class

PERFORMANCE PROPERTIES AS A LUBRICANT

PROPERTIES

STANDARD

VALUE

UNITS

SRV friction test

ASTM D5707

0.12

Coefficient

Shell four-ball test

Imprint diameter

IP 239

ASTM D2596



0.75



mm

Shell four-ball test

ICS weld point

IP 239

ASTM D2596



220



daN

Friction test, fretting wear, 1.7 m/sec at 98 N

Reichert

Testing in progress

  -

Potential noise reduction

GRW method

- 25

 dB

Press fit test



Testing in progress



Stamping test - Erichsen

ISO 20482

Testing in progress



RIG test for electrical contacts



Testing in progress



FIRE SAFETY PROPERTIES

PROPERTIES

STANDARD

VALUE

UNITS

Flash point (closed cup)

ISO 2719

 104

°C

Autoignition temperature

ASTM E659

> 200

°C

Lower explosive limit

EN 1839

1

% (volume)

Upper explosive limit

EN 1839

% (volume)

Content of explosive, oxidizing, flammable, or very/extremely flammable substances



CLP regulation



0



%

TOXICOLOGICAL PROPERTIES

PROPERTIES

STANDARD

VALUE

UNITS

Anisidine value

ISO 6885

< 6

-

Peroxide value

ISO 3960

< 10

meq(O2)/kg

TOTOX (anisidine index +2× peroxide index)

  -

< 26

-

Content of CMR, irritant and corrosive substances

CLP regulation

 0

%

Content of residual methanol derived from transesterification processes

GC-MS

 0

%

Emissions of hazardous, CMR, irritant, corrosive compounds at 160°C.

GC-MS

0

%

ENVIRONMENTAL PROPERTIES

PROPERTIES

STANDARD

VALUE

UNITS

Water hazard

WGK Germany

 1

Class

Primary biodegradability, CEC 21 days at 25°C

L 33 T 82

Higher than 90

%

Ready biodegradability

OCDE 301 A over a 28-day period

COD disappearance



ISO 7827



Higher than 80



%

Ready and ultimate biodegradability

OCDE 310 C over a 28-day period

Biodegradation after 69 days



Modified MITI



Higher than 90

 100



%

%

Bioaccumulation

Partition index (n-octanol/water)



  OCDE 107



Lower than 3



log KOW

Vapour pressure at 20°C

EN 13016

< 0.1

hPa

VOC concentration

(Volatile Organic Compounds)



  -



0



%

Sulphur content

 Bomb calorimeter

GC MS

< 200

ppm

Benzene content

ASTM D6229

0

%

Total halogen content

Bomb calorimeter

GC MS

 < 200

ppm

Chlorinated solvent content

  -

 0



Aromatic solvent content

  -

 0



Content of substances hazardous to the environment

CLP regulation

 0

%

Content of compounds with non-zero GWP

  -

0

%

Content of compounds with non-zero ODP

  -

0

%

Carbon balance, life cycle analysis.

ISO 14040

5.58

Kg, carbon equivalent





PRESENTATIONS

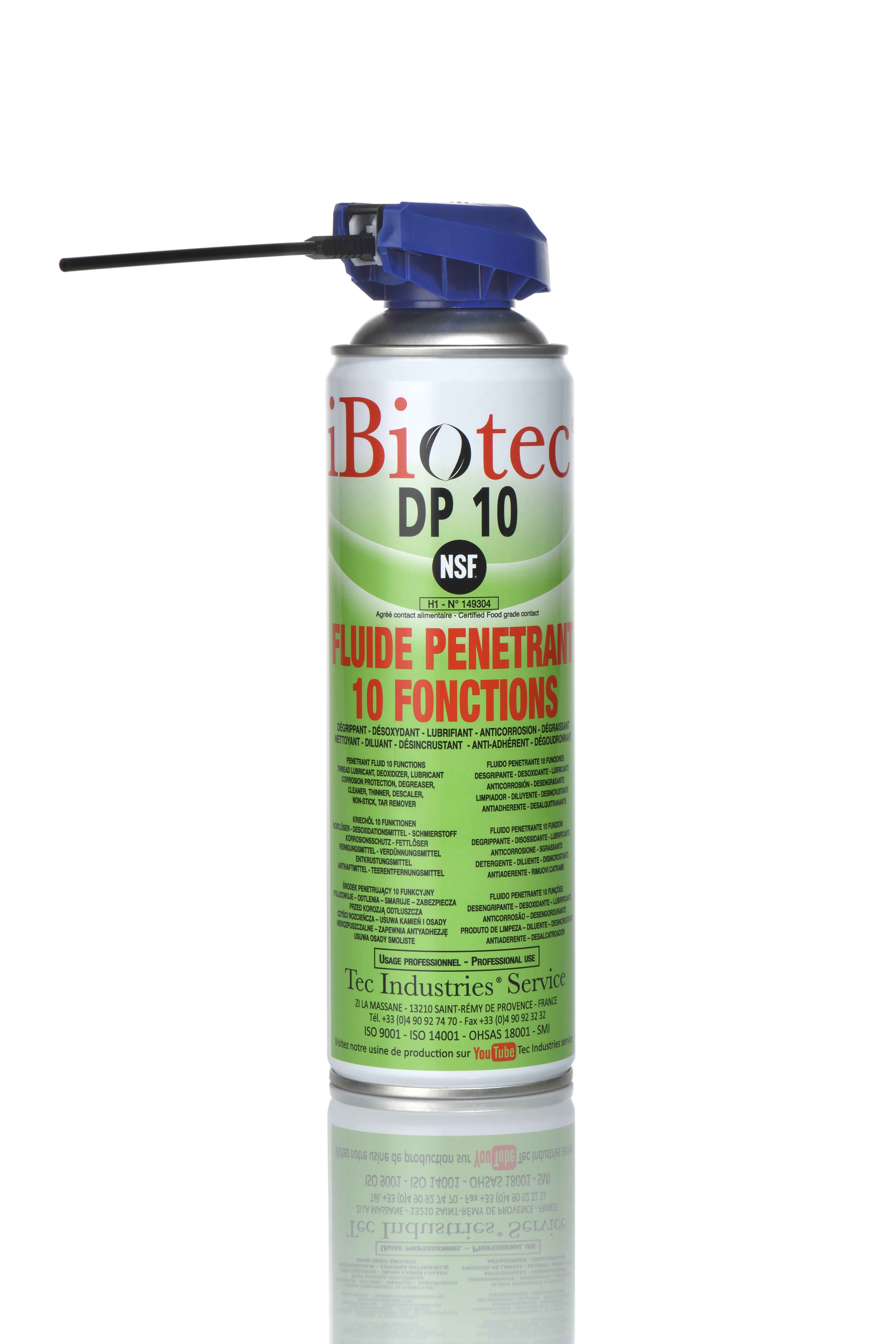

Aerosol 650 ml



penetrating aerosol, ten-function penetrating aerosol, aerosol for penetration and release of seized parts, super-active penetrating aerosol, ibiotec penetrating aerosol, penetration deoxidation lubrication corrosion protection and cleansing, deoxidising aerosol

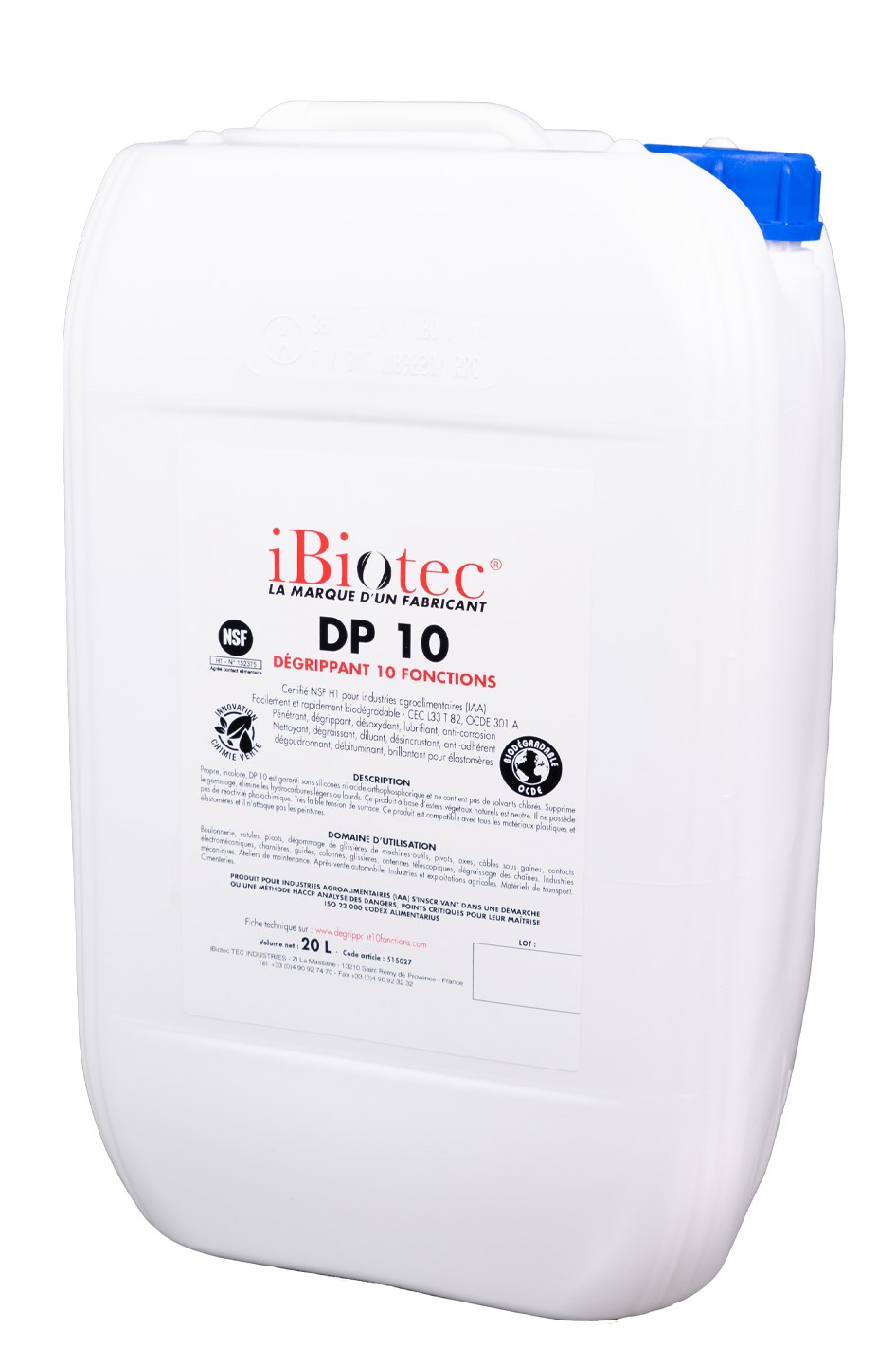

Can 20 L



ten-function super penetrating aerosol, biodegradable, NSF food industry certification, very low surface tension for immediate action, non-flammable propellant, penetrating aerosol, ten-function penetrating aerosol, penetrates and frees seized parts, ibiotec super-active penetrating aerosol, releases deoxidises lubricates protects against corrosion cleans cleanses, deoxidising aerosol

Product suitable for agro-food industries (IAA)
Consistent with an HACCP approach or method

Risk analysis, Critical issues for risk management

ISO 22000 CODEX ALIMENTARIUS





NSF category:

H1 lubricant: can be used in areas in which food is manufactured. Can be used as a lubricant, anti-corrosion agent, as a non-stick agent for tank door hinges, as a lubricating grease for equipment in areas with potential contact with foodstuffs.

Looking for another product?

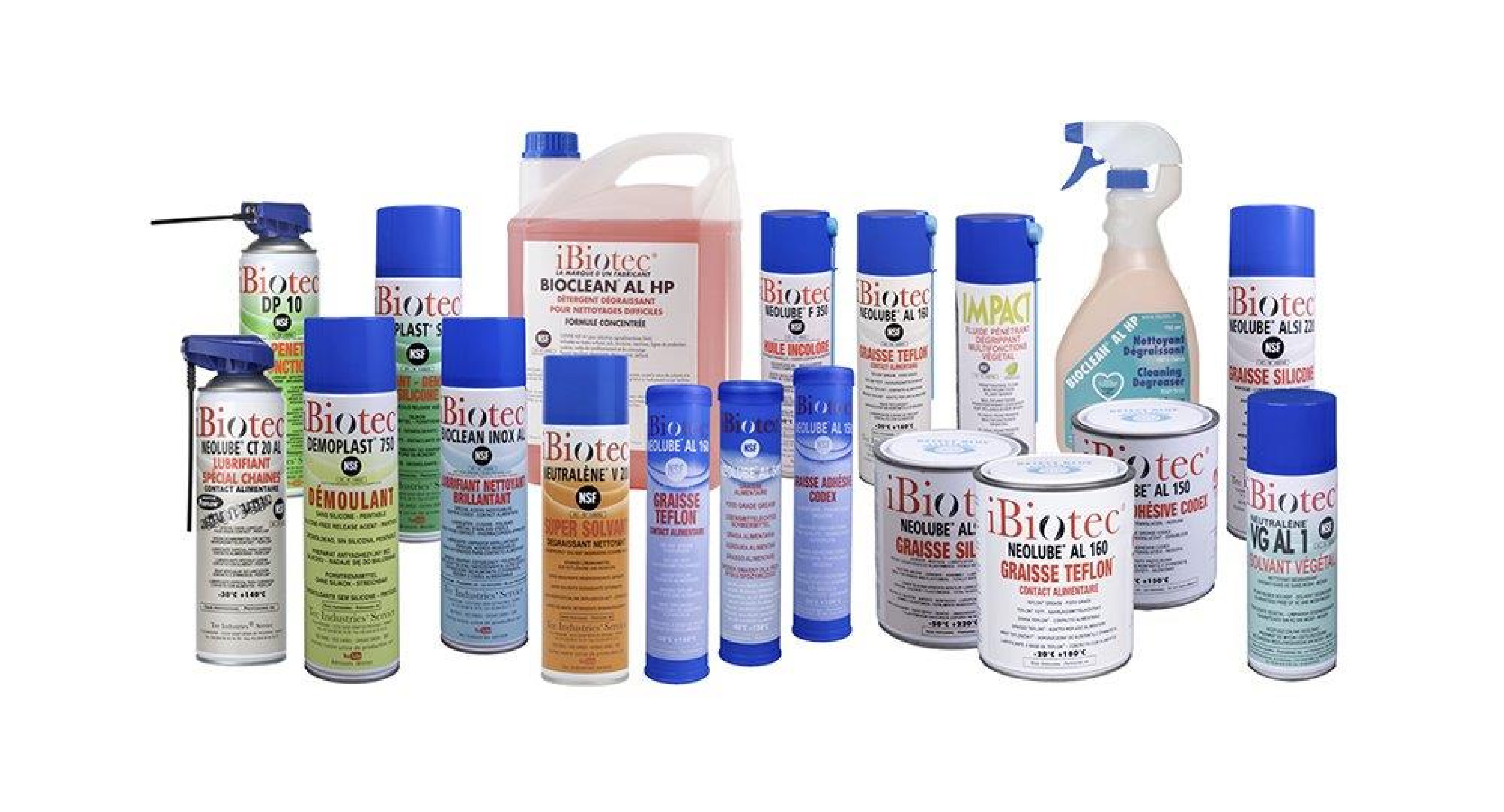

Discover our entire range by clicking on the photo
